High Voltage M142D

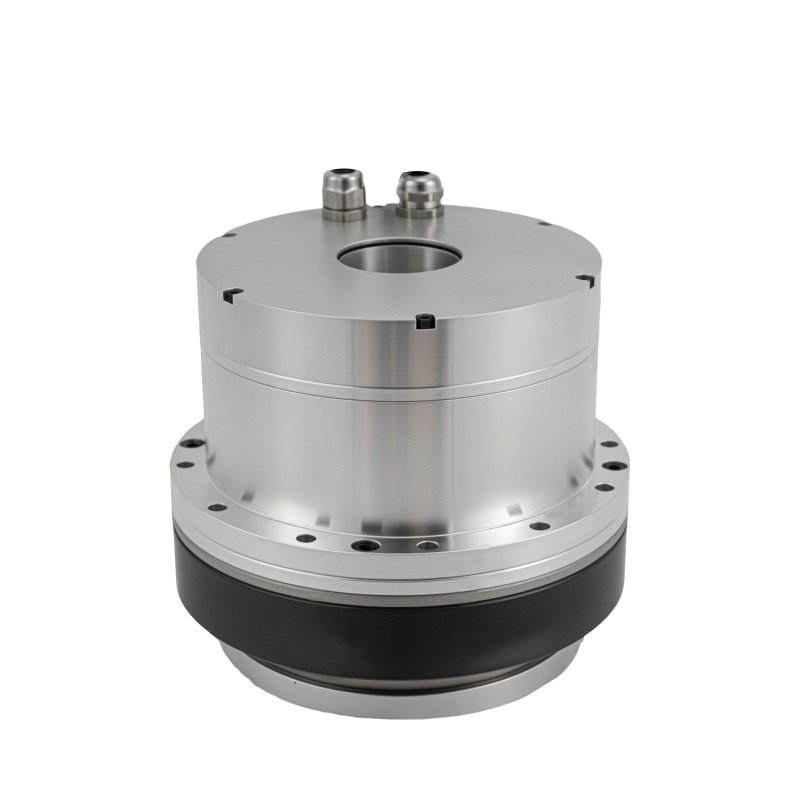

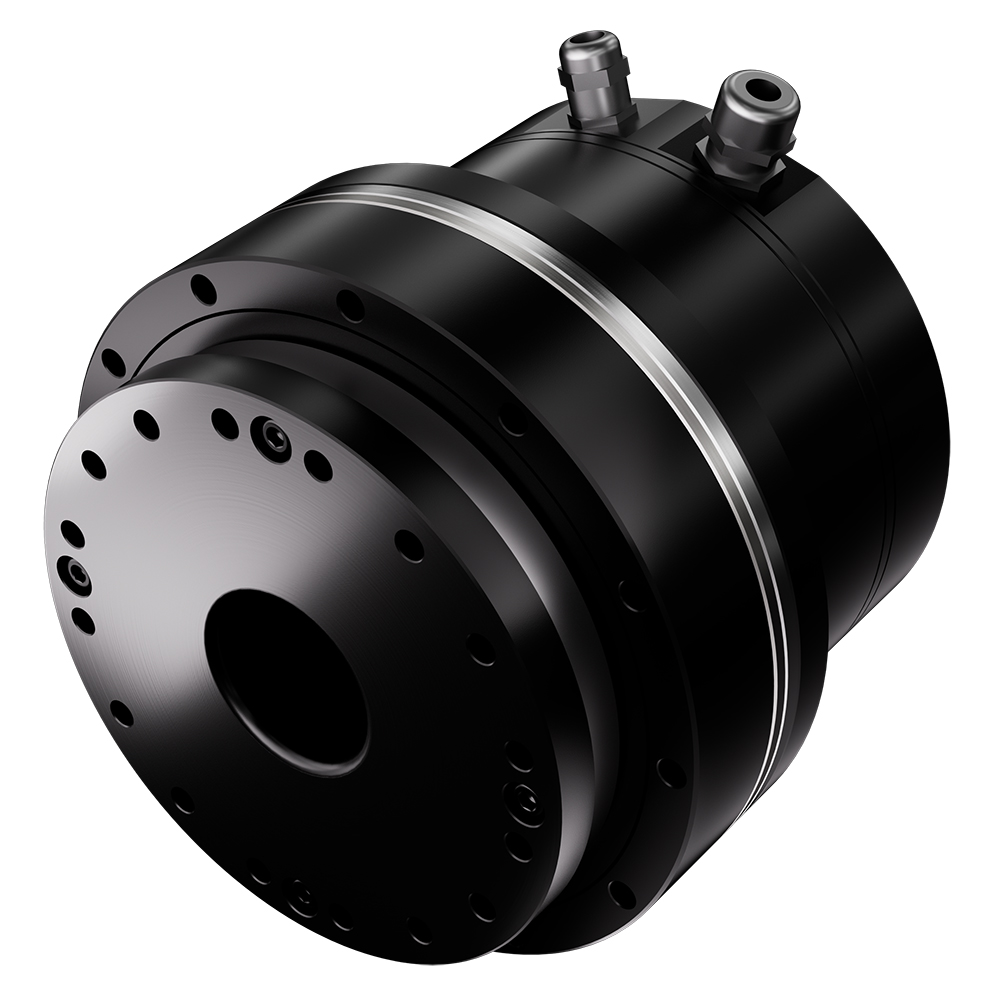

M142D High Voltage Rotary Actuator

The M142D High Voltage Rotary Actuator is engineered for precision and reliability, offering high torque in a compact, efficient design.

Featuring an electromagnetic brake and a large hollow shaft, it minimises vibration during operation. With absolute positioning accuracy within 20 arc seconds, the M142D delivers exceptional precision in various applications.

Designed for challenging environments, it has an IP65 and IP54 protection rating, ensuring reliability under tough conditions.

Maintenance-free, it does not require grease replacement over its long lifespan of more than 15,000 hours, maintaining accurate performance throughout.

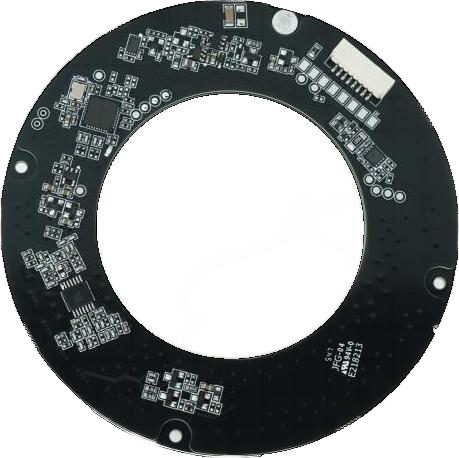

Integrated Dual Absolute Encoder

• Dual-Loop Position Control
• Equipped with a 16-bit absolute multiturn encoder for the output shaft.
• Achieves repeatability of up to ±7 arc seconds.
• Delivers absolute accuracy of up to ±15 arc seconds.
• Retains the true absolute position and multi-turn counter even during power loss.

Integrated Friction Brake

• Provides smooth and stable braking performance.
• No gaps or backlash, ensuring precise and reliable operation.
• Does not require any movement upon power-on, ensuring immediate readiness. Designed with zero wear and tear, ensuring long-lasting durability.
• It can be utilised as an emergency stop, providing an added layer of safety during critical situations.
